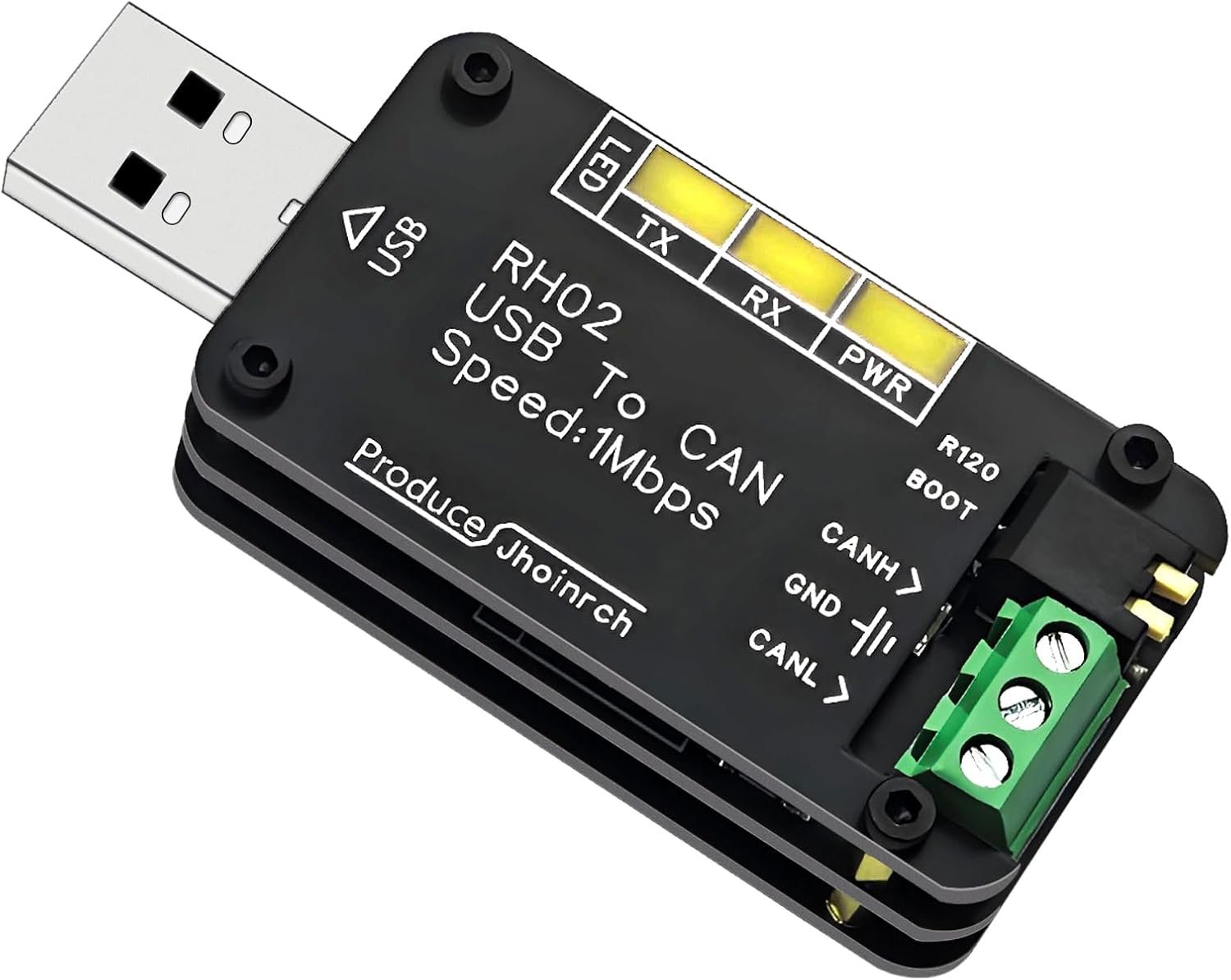

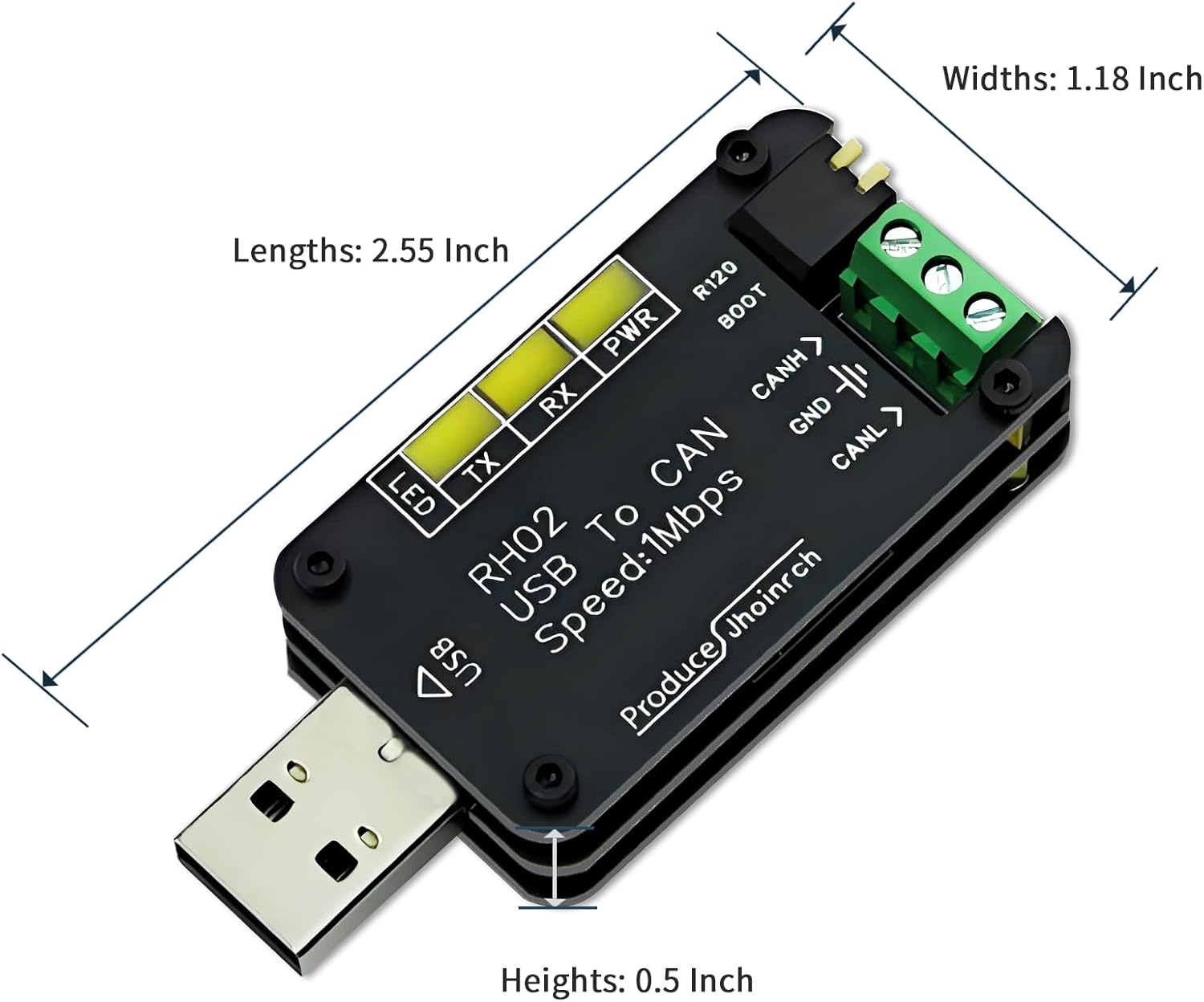

USB to CAN Bus Converter Base on Open-Source Hardware CANable

$ 19

+ Free Shipping

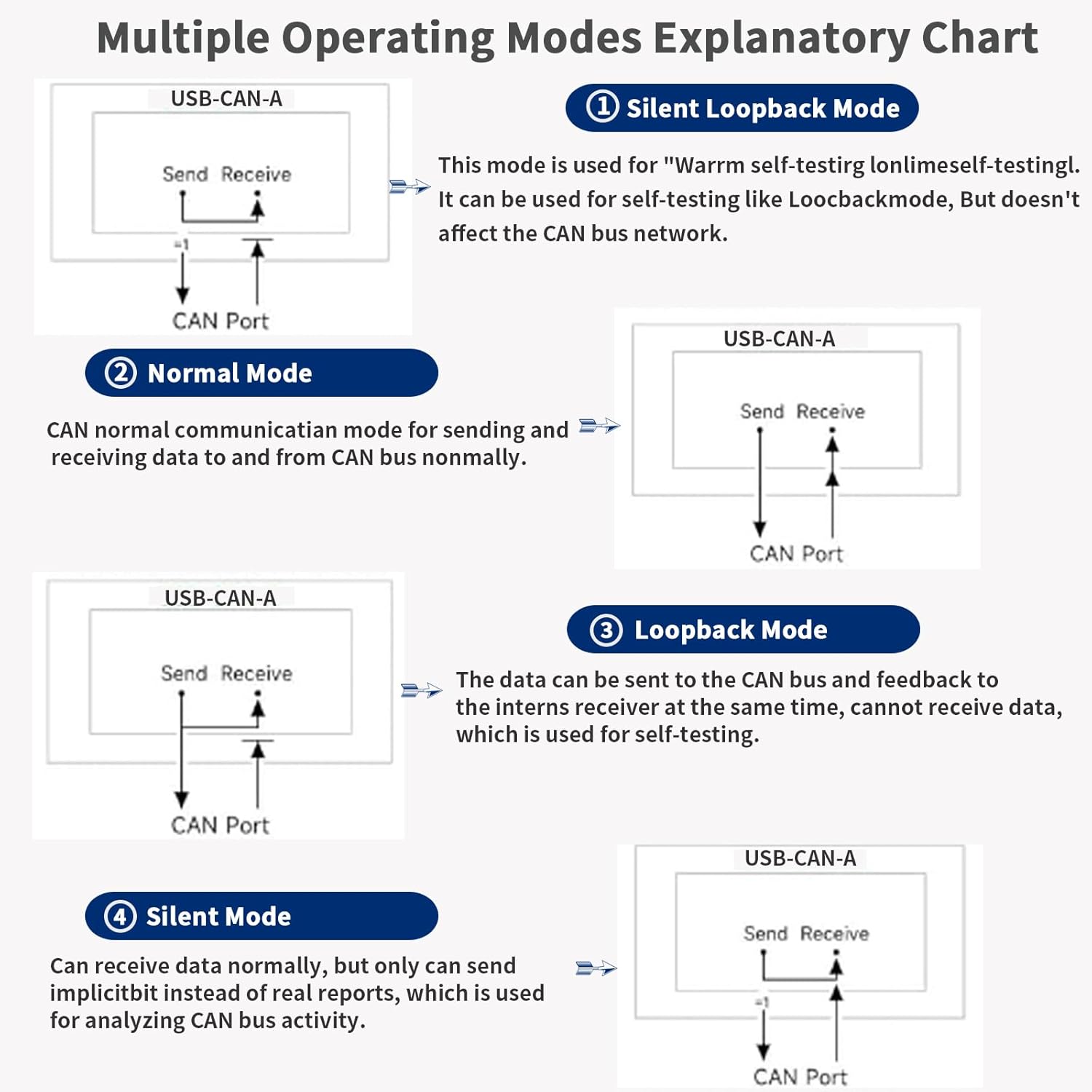

Supports Multiple Firmware and Operating Modes

About this item

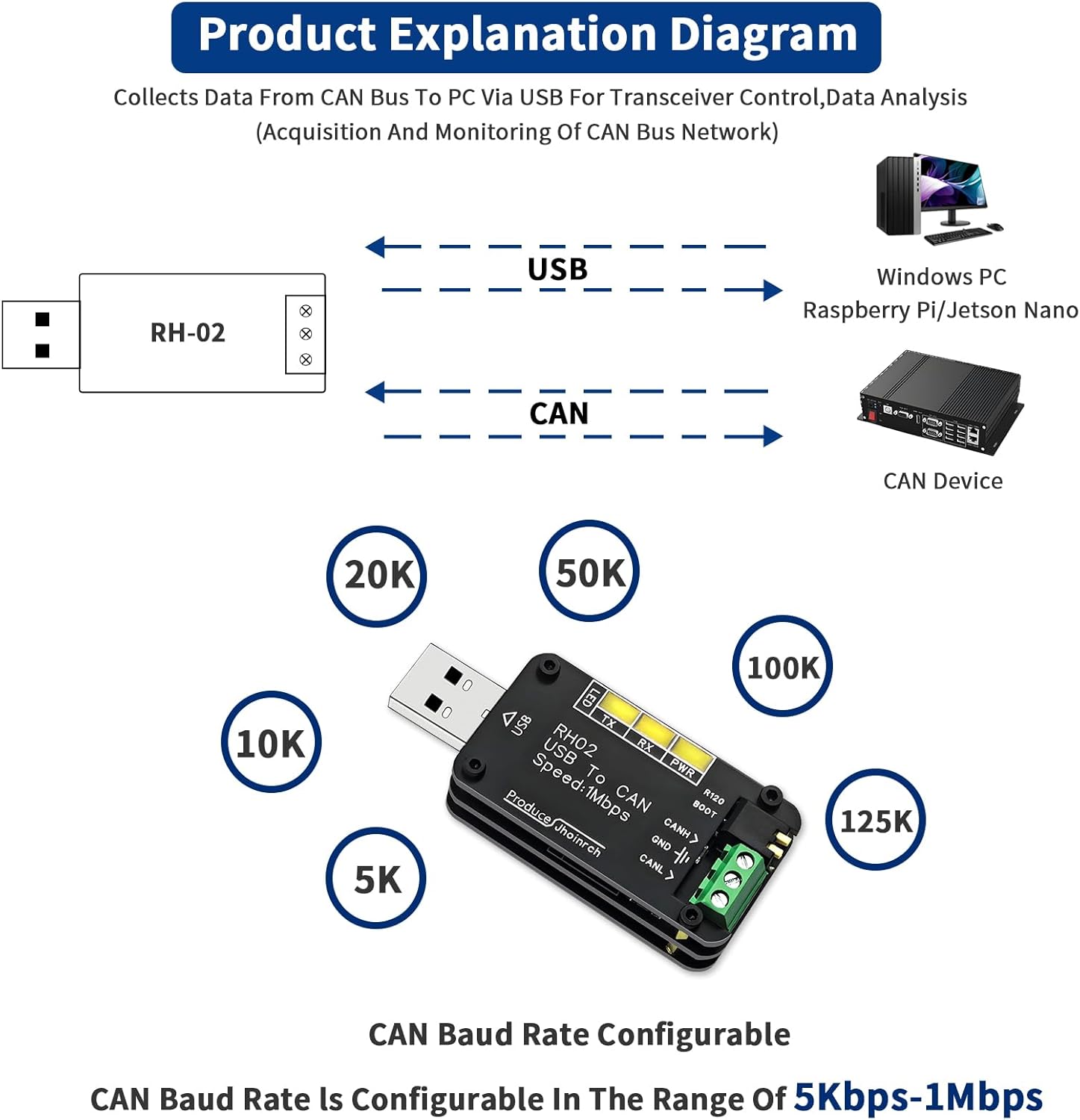

  • [Usb Canbus Adapter] USB TO CAN adapter provides users with basic CAN bus monitoring and processing for automotive signal processing, servo motor debugging and other scenarios.
  • [Canable Project] Is derived from the Canable project in the Github platform. It provides high quality Canable hardware for automotive engineers, industrial robotics engineers, hobbyists and other CAN bus users. All technical information about this product is publicly available on Canable.IO and Github.

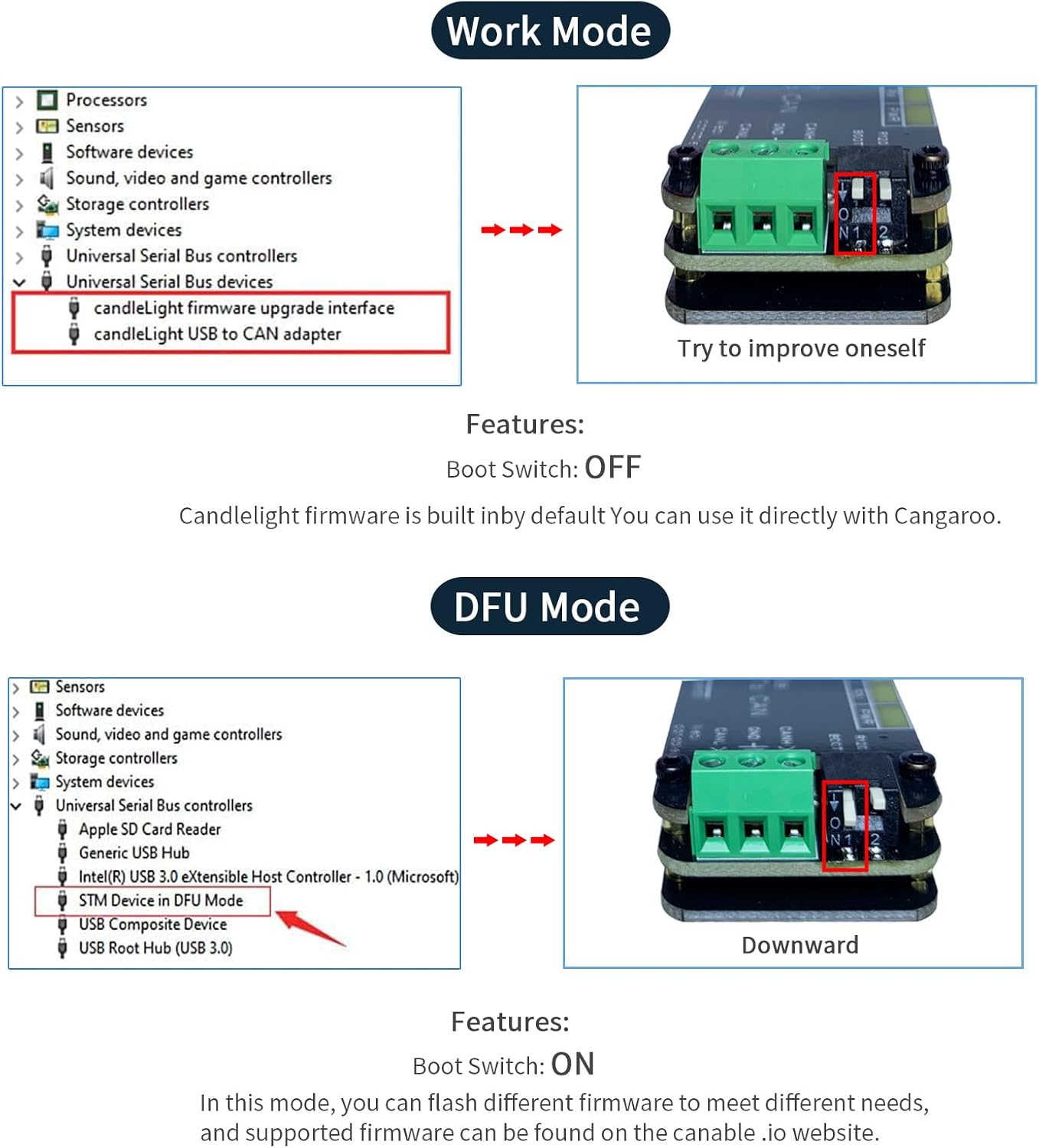

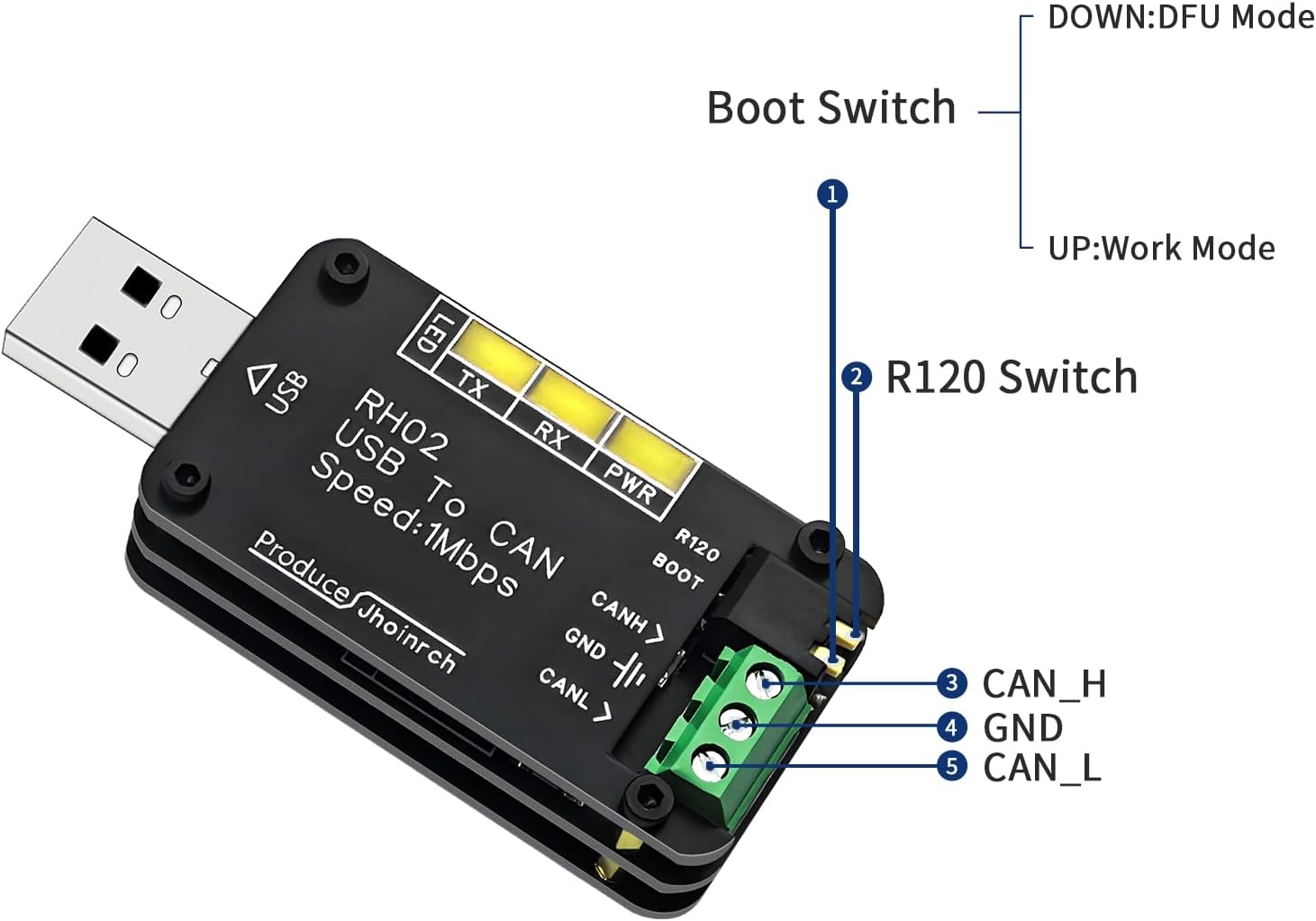

  • [Can Bus Analyzer]RH-02 factory burns the default Candlelight firmware of Canable project, meanwhile, users can also get more featured firmware in Canable project in Github platform, and use RH-02 boot button with DfuSeDemo software to burn it.
  • [High Compatibility]A variety of CAN bus software is available, and users can use the open source software to monitor and process CAN bus data. You can also burn other firmware to support BUSMASTER, PCAN, SLCAN and other CAN bus software.
  • [Buyer Support]Jhoinrch backs this usb to canbus with lifetime technical support, a one-year product replacement and warranty, and a 100% customer satisfaction guarantee.
Guaranteed Safe Checkout

Function Comparison Chart

8ffbf43b Ea10 455b A23d 563b9e81efb6. CR0,0,300,225 PT0 SX300 V1

USB to Can Adapter

12f7778e C871 4e3a 868f 1fdc3bf21a2b. CR0,0,300,225 PT0 SX300 V1

USB to Can FD adapter

8f9d57f2 79ad 422a A70f Cd636808bc02. CR0,0,300,225 PT0 SX300 V1

Isolator USB CAN FD Adapter

Maximum speed

1Mbps

Maximum speed

5Mbps

Maximum speed

5Mbps

Bus Specifications

CAN

Bus Specifications

CAN FD/CAN

Bus Specifications

CAN FD/CAN

Bus protection function

OC/TVS/GDT/ESD

Bus protection function

OC/TVS/ESD

Bus protection function

OC/TVS/GDT/ESD/Signal isolated/Power isolator

Based on open source projects

Canable 1.0

Based on open source projects

Canable 2.0

Based on open source projects

Canable 2.0
